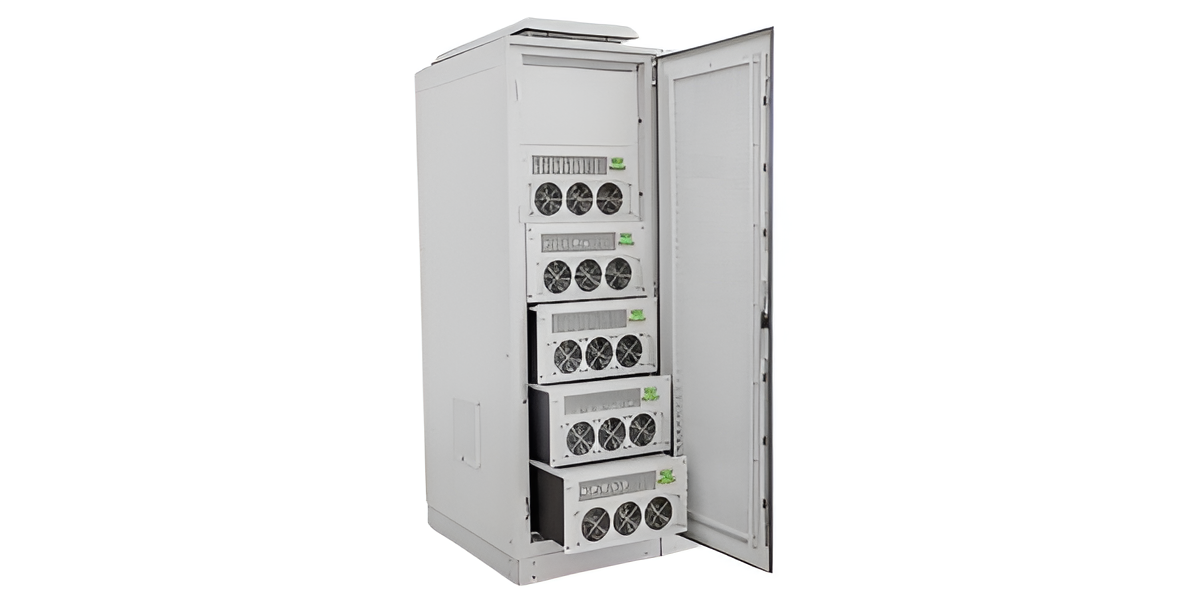

SE-02 Active Harmonic Filter Panel (AHF)
The Active Harmonic Filter Panel (AHF) is a state-of-the-art solution designed to dynamically eliminate harmonics and improve power quality in electrical networks. Built for modern industrial and commercial applications, the SE-02 AHF intelligently detects and filters harmonics in real-time, ensuring compliance with IEEE 519 standards and enhancing system efficiency. It also supports load balancing and reactive power compensation, contributing to improved equipment lifespan, reduced energy losses, and overall power system stability.
Technical Specification
- 3P3W/3P4W, 380V to 480V, 50-60Hz
- Standard -CE,IP 2X, IEC 50091-3
- Current Rating- 50A,100A,150A,200A,…..1500A
- 3 Level Topology/IGBT Control Technology
- Response Time- 50 micro sec.
- HMI -4.3, 7 inch Screen
- Suitable to Hybrid design LT/HT Consumer, unbalance distribution network network
- Protection- Overcurrent, Overvoltage, Over temperature, IGBT saturation Protection.
- Automatic Harmonic Mitigation- Upto 71th level (Under IEEE 519-2014).
- Forced Air Cooling Fan,Noise Level < 65 dB Communication- RS232
