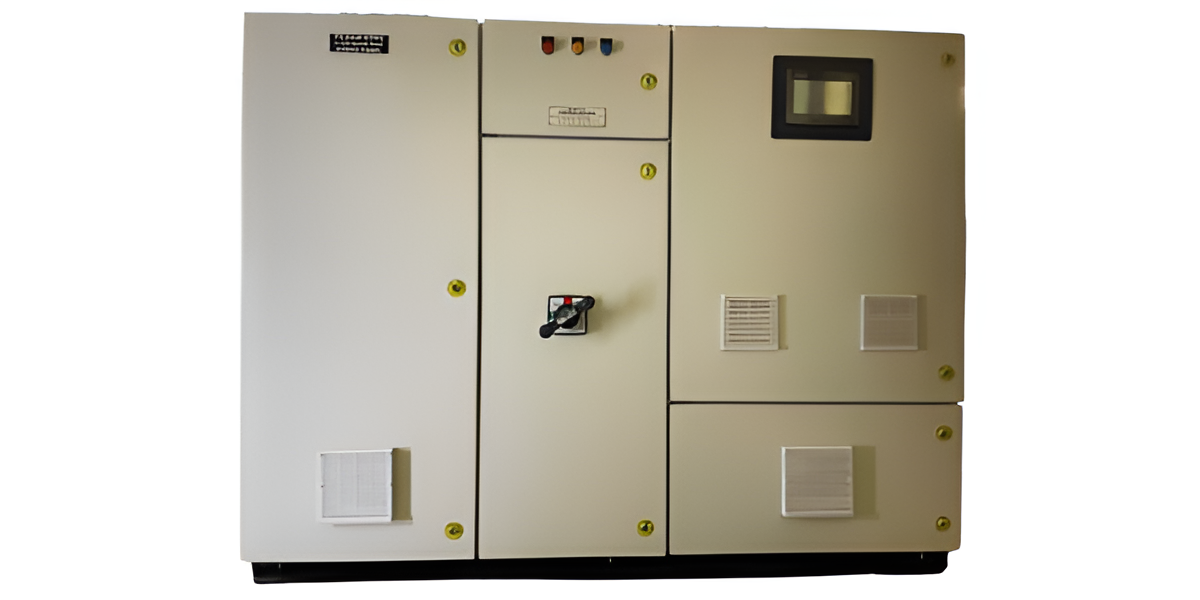

SE-05 Hybrid RTPFC and ASVG Panel
Hybrid RTPFC (Real-Time Power Factor Correction) and ASVG (Active Static VAR Generator) Panels are advanced power quality solutions designed to improve power factor, reduce harmonic distortion, and stabilize voltage in real-time. These panels combine the fast-acting capabilities of ASVG with the reactive power compensation of RTPFC, delivering optimal performance for dynamic and non-linear loads.
Technical Specification
- Communication- RS485
- Standard -CE,IP 2X, IEC 50091-3
- 3P3W/3P4W, 380V to 480V, 50-60Hz,
- Back up RTPFC Controller
- Combination of ASVG and Thyristor switching RTPFC
- Rated Power: 100kVAR upto 10000kVAR
- 3 Level Topology/IGBT Control Technology
- DSP Based ASVG Controller with HMI screen
- Response Time- 50 micro sec and full response time less than 1 Cycle
- Forced Air Cooling Fan Noise Level < 65 dB l
- Protection- Overcurrent, Overvoltage, Over temprature, IGBT saturation Protection.
- Real time step less compensation - Leading & Lagging Target PF adjustable from -1 to 1
