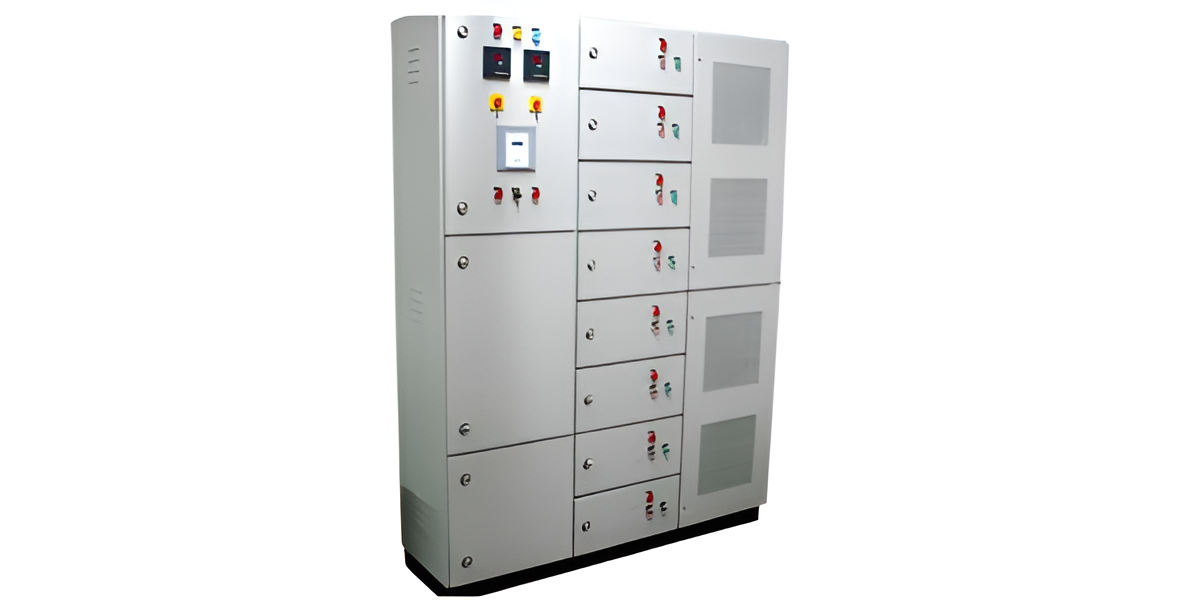

SE-06 Hybrid APFC & SVG Panel
A Hybrid APFC (Automatic Power Factor Correction) & SVG (Static Var Generator) Panel is a cutting-edge solution designed to optimize power factor and improve power quality. It combines the fast response of SVG technology with the cost-effectiveness of APFC systems, delivering efficient reactive power compensation, harmonic filtering, and voltage stabilization. Ideal for industries with fluctuating and non-linear loads, this hybrid panel ensures energy savings, enhances equipment lifespan, and ensures compliance with grid norms.
Technical Specification
- Rated Power: 50kVAR upto 1500kVAR
- Rated Voltage: 3P 50 Hz: 415V-690V
- Every Step shall be Suitable protection Step Switching Time- 60 Sec.
- 3 Level Topology/IGBT Control Technology HMI -4.3, 7 inch
- Screen Response Time- 50 micro sec and full response time less than 1 Cycle
- Protection- Overcurrent, Overvoltage, Over temprature, IGBT saturation Protection.
- Real time step less compensation - Leading & Lagging Target PF adjustable from -1 to 1
- Combination of switched capacitor banks and SVG Panel Switching device: Capacitor duty Contactor Single CT & 3 CT HT/LT Sensing PF controller
- Maximum No steps: 24 Nos.
