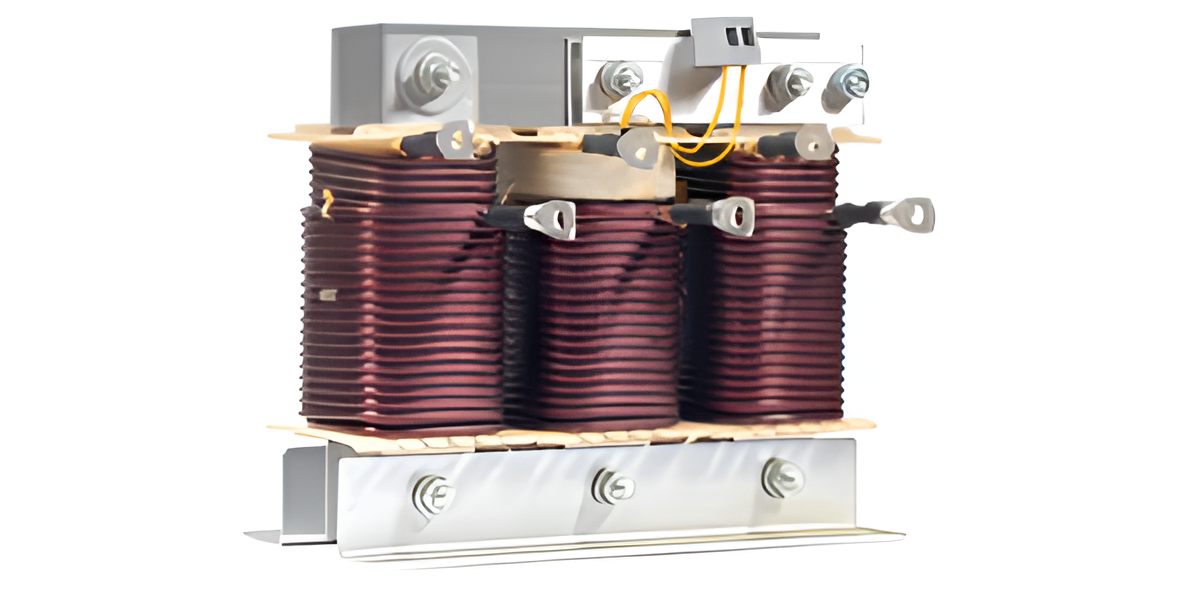

SE-07 Detuned Harmonic Reactor
A Detuned Harmonic Reactor (DHR) is a type of passive harmonic filter used in electrical power systems to reduce the effects of harmonic distortion, which can be caused by nonlinear loads like variable frequency drives (VFDs), UPS systems, and other electronic equipment.
Technical Specification
- Voltage Range- 415V to 690V , 50Hz.
- 180% linearity
- Rating : 5kVAR to 150 kVAR
- Dutuned Factor : 2% to 14%
- Copper & Alluminium wound Tuned & Detuned filter application
- Application- In series with capacitor to reduce the capacitor ripple
- F Class insulation level
