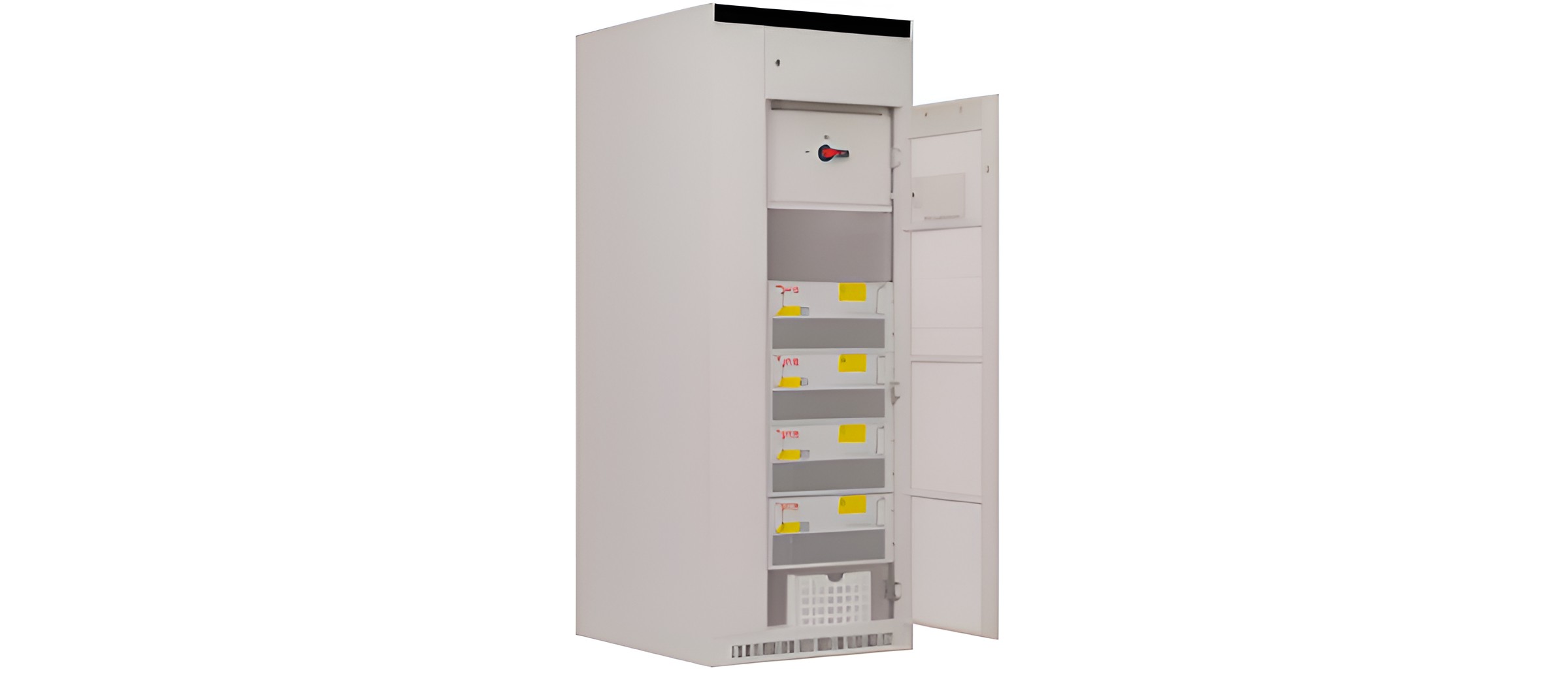

SE-04 Advanced Static Var Generator(ASVG)
Advanced Static Var Generator (ASVG) is a cutting-edge power quality device designed to dynamically manage reactive power in electrical systems, enhancing voltage stability, reducing losses, and improving overall power factor. It plays a crucial role in industrial and utility-scale applications where fluctuating loads and poor power factor can impact system performance.
Technical Specification
- 3P3W/3P4W, 380V to 480V, 50-60Hz,
- Rated Power: 120kVAR upto 1500kVAR
- HMI -4.3,/7 inch Screen
- Communication- RS485
- Suitable to Hybrid Control with RTPFC/APFC Panel
- 3 Level Topology IGBT Control Technology
- Response Time- 50 micro sec and full response time less than 1 Cycle
- Forced Air Cooling Fan Noise Level < 65 dB
- Protection- Overcurrent, Overvoltage, Over temprature, IGBT saturation Protection.
- Real time step less compensation - Leading & Lagging Target PF adjustable from -1 to 1
- Standard -CE,IP 2X, IEC 50091-3
