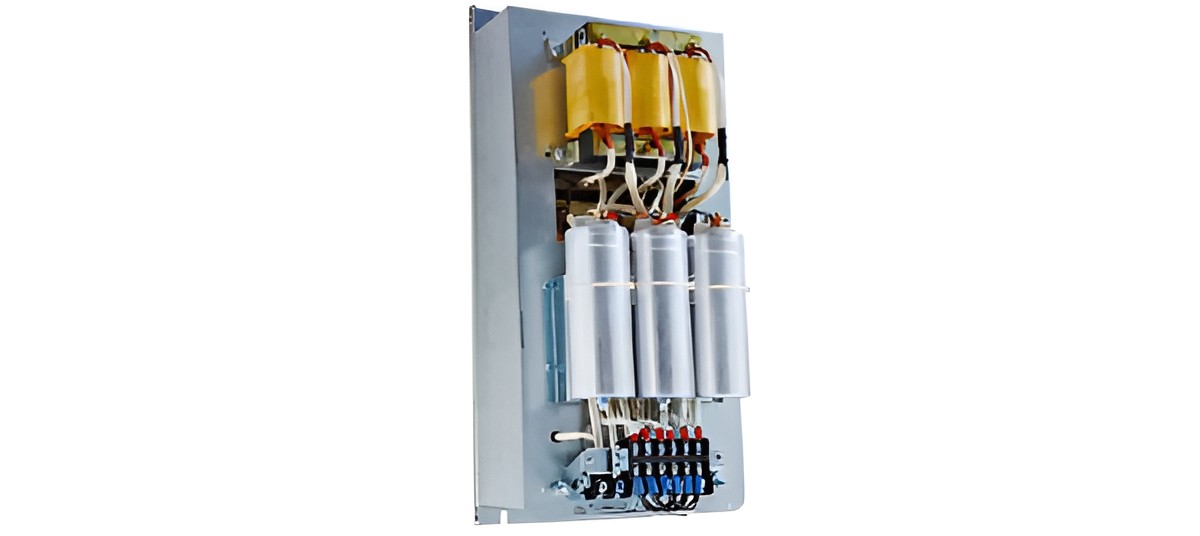

SE-03 Passive Filter
The Passive Filter is a high-performance electrical filtering device designed to eliminate unwanted harmonics and improve power quality in industrial and commercial systems. It operates without any external power supply, using passive components like inductors, capacitors, and resistors to attenuate specific frequency ranges. Ideal for motor drives, VFDs, and sensitive equipment, the SE-03 ensures reduced total harmonic distortion (THD), enhanced energy efficiency, and prolonged equipment life.
Technical Specification
- 3P3W/3P4W, 380V to 480V,50-60Hz
- Current Rating- 50A,100A,150A,200A,.
- Fixed Harmonic Mitigation Single level.
- Upto15th level (Under IEEE 519-2014).
- Forced Air Cooling Fan Series and Shuntconnection of Reactor/Capacitor.
- Panel Moutning Type- Floor Mount/Wall, Color-RAL 7035
- Protection- Overcurrent, Overvoltage, Over temperature
